Minolta MC Rokkor SI 28mm 1:2.5 W – MC II – review
Minolta MC Rokkor SI 28mm 1:2.5 W vintage manual lens review (Minolta MC W Rokkor-SI 1:2.5 f=28mm)
- Official classification: MC
- Collector’s classification: MC II, Hills &Valleys, Knurled
A very popular lens which is often mentioned in recommendations for someone who is looking for a wide-angle tool.
Minolta MC Rokkor SI 28mm 1:2.5 specifications
# in minolta.eazypix.de index | 43 |
Name engraved on lens | MC W.ROKKOR-SI |
f[mm] | 28 |
A max [1/f] | 2,5 |
A min[1/f] | 16 |
Lens design [el.] | 9 |
Lens design [gr.] | 7 |
Filter thread Ø front(rear)[mm] | 55 |
Lens Shade | screw-in |
closefocus[m/ft] | 0.5/1.5 |
Dimension Ø x length [mm] | 64×61 |

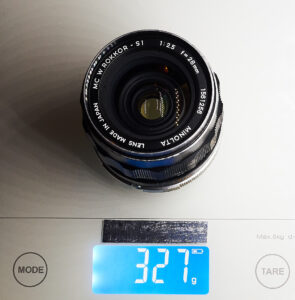

Weight[g] | 340 |
Year | 1970 |
Style | MC II |
Code No. (ROKKOR-X) or Order No. | 607-018 |
Notes |
More data
Floating elements | NO |
Aperture blades number | 6 |
Confidence in the test results of reviewed copies | Enough high |
Reviewed Lens SN: | 1561256 |
Historical notes
The lens has three reincarnations – MC I, MC II, and MC III (by popular collectors classification). This revied “Hills & Valleys” or “Knurled” design is MC II – the second generation that was born in 1970. All released lenses with parameters 28mm F2.5 by Minolta are radioactive. If my information is correct, the Minolta produced for 35mm cameras only two lens models which contain active elements in the glass – this 28/2.5 and 58/1.2 (reviewed already in non-radioactive version).
The 28/2.5 hasn’t non-radioactive versions but from my point of view the level of activity is low and if to follow simple rules (like not to eat yellow snow… the yellow glass I mean. But yellow snow also in this list…) everything will be fine. I recommend to google more about radioactivity if you are worried. It seems to me that this trait adds a few scores for the popularity of this lens – it makes it a little unique and dangerous, so, only real rebels and cool guys can use it.
About yellowing of tested copy

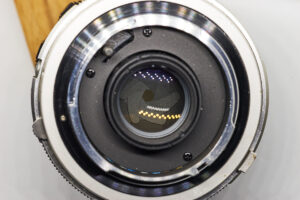

The reviewed copy has the easily visible yellow-tint on the back lens – it’s a result of radioactive decay. The color can be easily fixed with an ultraviolet lamp (or sun-bath) but I prefer to leave it because two reasons, firstly I wanted to check how easy it can be fixed with auto-WB in digital editors, secondly the keeping this tint untouchable may turn the lens into good example which demonstrates the radioactive effect on glass if such example will be needed in future, for today this is only one radioactive lens which is available for me.

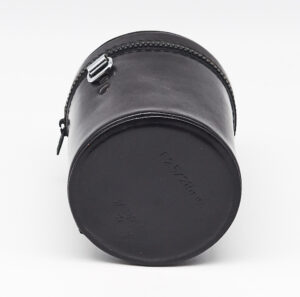

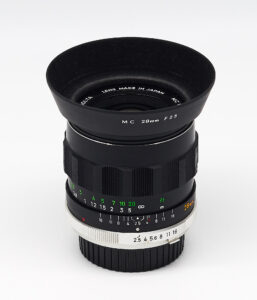

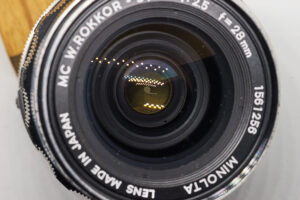

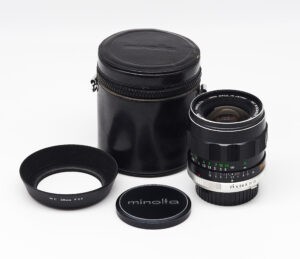

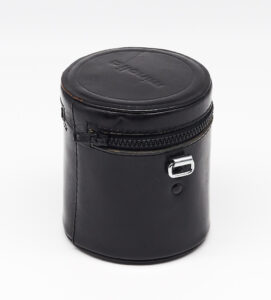

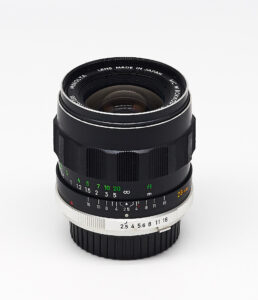

Minolta MC Rokkor SI 28mm 1:2.5 lens exterior

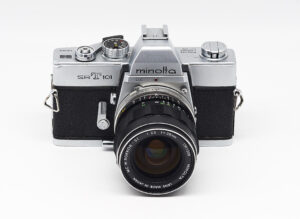

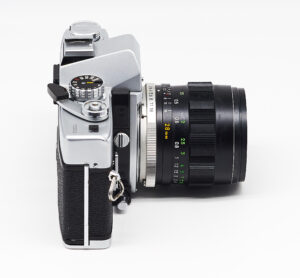

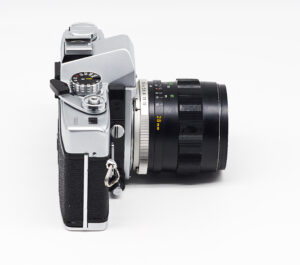

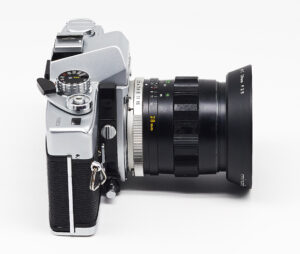

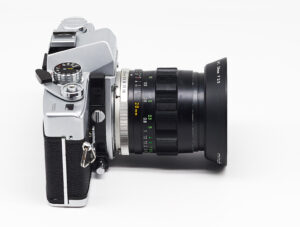

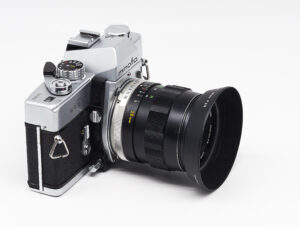

Minolta MC Rokkor SI 28mm 1:2.5 mounted on camera Minolta SR-T101
Minolta MC Rokkor SI 28mm 1:2.5 sharpness
Сlose-distance resolution test, minimal distance
Testing methods description
- Target: 10-15 cm picture, printed on glossy photo paper
- Distance: 1.7m
- Camera: Sony A7II (24mpx, full-frame, tripod, remote control). M-mode, ISO fixed, WB fixed, SteadyShot – OFF.
- The test was repeated for every F-stop on every focus position with manual focus adjustment for each shot. That is to avoid the effect of field curvature.
- RAW processing: Capture One, default settings. All quality settings – 100%. Crops – 300×200 px
Original target image (printed in horizontal orientation on 10cm X 15cm glossy photo paper)
Scene preview
Test results
Long-distance resolution test
Testing methods description
- Target: cityscape
- Distance: > 200 meters to center focus point
- Camera: Sony A7II (24mpx, full-frame, tripod, remote control). M-mode, ISO fixed, WB fixed, SteadyShot – OFF. The focus point is on the center only.
- RAW processing: Capture One, default settings. All quality settings – 100%. Crops – 300×200 px
Scene preview
Test results
Minolta MC Rokkor SI 28mm 1:2.5 aberrations
Vignetting
Geometric distortion
Coma aberrations
Chromatic aberrations
Long-distance bokeh
Test#1
Test conditions: the lens was focused on 0.5m, buildings are on “infinity”-distance
Test#2
Test conditions: lens was focused on 1m
Light bubbles bokeh – infinity
Test #1
The lens is on the minimal focusing distance 0.5m, lights are on infinity (cityscape)
Test #2
Test conditions: lens was focused on 1m
Minolta MC Rokkor SI 28mm 1:2.5 final conclusion
Instead of other lenses from the era of “full metal jackets” this lens, not just a simple “steel&glass” but “steel&glass&radioactivity” so it is a treasure for anti-plastic rebels and a nice training tool for the preppers. Of course, it’s not the only advantage.
Seriously, it has low aberrations and nicely fixed geometric distortion. I’m not a connoisseur of bokeh from wide-angle lenses but test samples demonstrate that this lens has a pleasant rendering that may be successfully used for a herbs/flower photography or subject photography, etc.
About the sharpness: the lens is really sharpened and provides enough good resolution over the frame from F5.6 (F8.0 is better of course) – an amazing result for wide lenses. No doubts that it is the best 28 lens from the “steel&glass” series. I can’t say that this is a gem, but it stays on position right after fantastic New-MD 28mm F2.
What about radioactivity – it seems to me as a disadvantage, not because of influence for health – just follow simple rules and everything will be fine, but because of the fact of the existence of these rules (and of course not because of yellow tint which can be easily fixed).
The lens can be recommended by it’s IQ, but what about the disadvantages – it’s a personal choice of a photographer.
