Minolta MD 28mm 1:2.8 – 5 elements 5 groups – review
Minolta MD 28mm 1:2.8 5×5 – vintage manual lens test and review
- Official classification: New-MD
- Collector’s classification: MD III

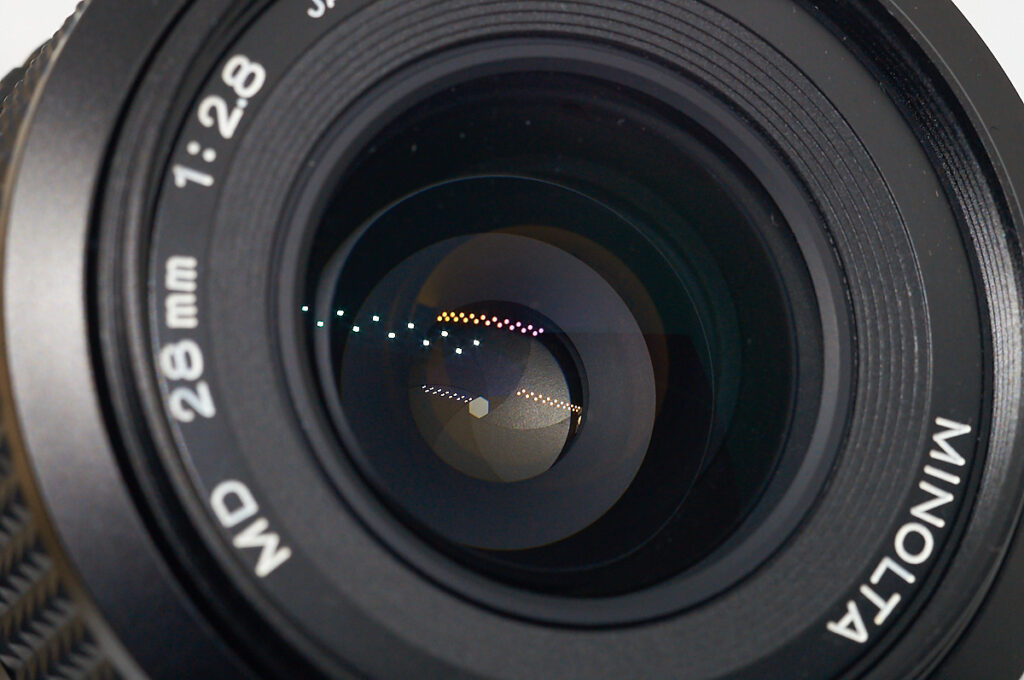

Minolta has produced two MD 28mm F2.8 lenses in the similar MD III design – one with 7 elements in 7 groups optical scheme and another – 5 elements in 5 groups. Both have enough identical exterior but may be easily distinguished because 5×5-version has a thin black ring around the front lens but 7×7-version doesn’t have. Both sisters have been compared by sharpness/resolution, the link is at the bottom of the page. But this article is about the test results of the 5×5-version.
Minolta MD 28mm 1:2.8 5×5 (MD III, New-MD) specifications
| minolta.eazypix.de index | 52 |
| Name engraved on lens | MD |
| f[mm] | 28 |
| A max [1/f] | 2,8 |
| A min[1/f] | 22 |
| Lens design [el.] | 5 |
| Lens design [gr.] | 5 |
| Filter thread Ø front(rear)[mm] | 49 |
| Lens Shade | clip-in |
| closefocus[m/ft] | 0.3/1 |
| Dimension Ø x length [mm] | 64×43 |
| Weight[g] | 185 |
| Year | 1983 |
| Style | MD III |
| Code No. (ROKKOR-X) or Order No. | 590-910 |
| Floating elements | NO |
| Aperture blades number | 6 |
| Confidence in the test results of reviewed copies | Very high |
| Reviewed lens SN: | 9084875 |
-

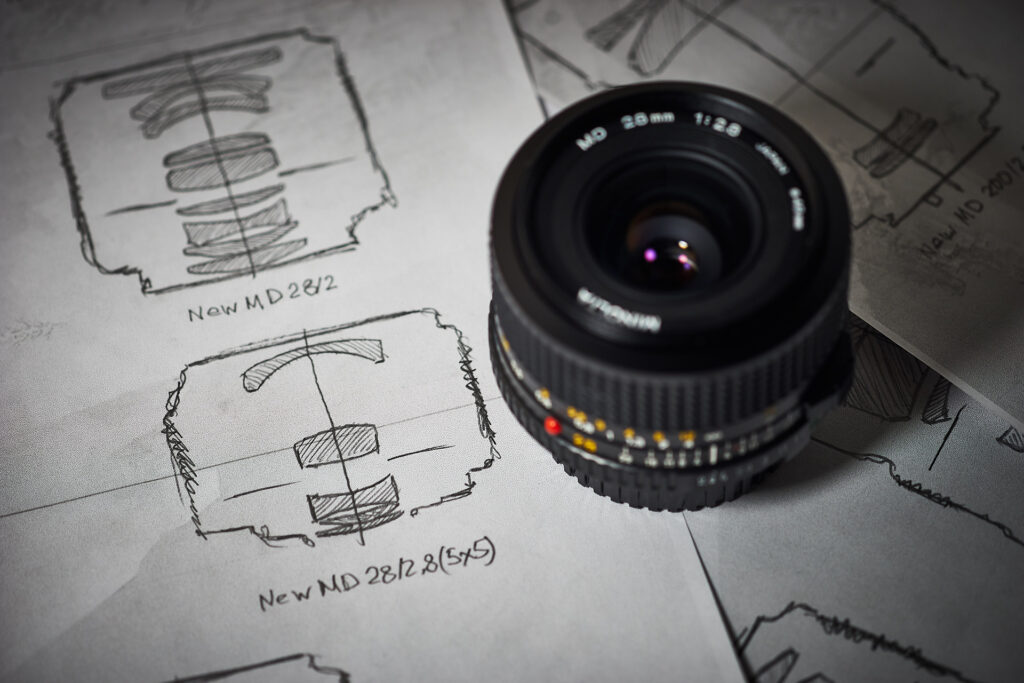

- Minolta MD 28mm f2.8 5×5 optical design
A little note regarding the weight of the lens 185 grams:

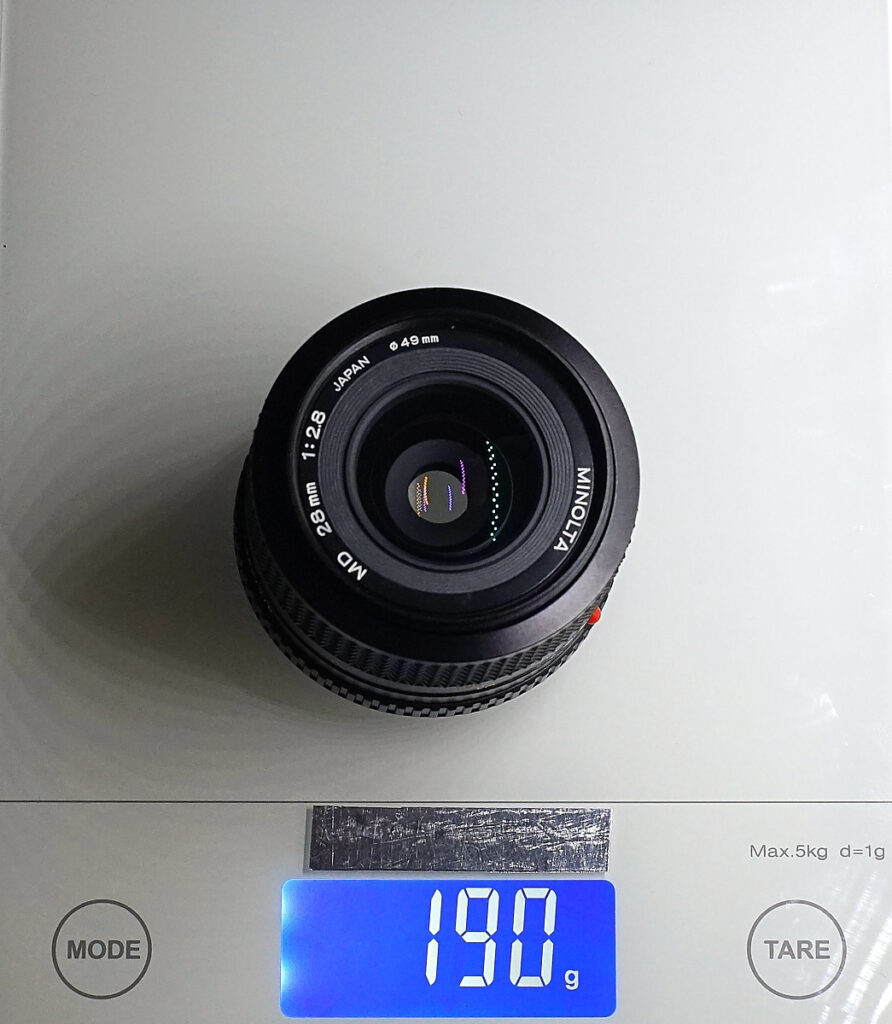

My precision scale shows 190.44 grams for the 5-lens version, and 190.81 for the 7-lens version, of course I can’t say that the scale is absolutely accurate, but I checked on two other scales, so I will leave in the article a photo of the measurement – 190 grans. However, the characteristics indicate 185 grams. This is based on the tables of minolta.eazypix.de, and secondly – on the data from the book “Minolta Lens – Perfect Data” (Although, the book may be the original source in both cases). The book indicates the same weight for the MD2 and MD3 versions and it is 185 grams. Perhaps we are dealing with a possible change in technology, or in the design, or perhaps with the results of storing and using lenses. Please, see the comment by Dr. Gerhard Obermayer – his results are much closer to the official ones than mine.. Yes, such small differences may not be very important, but they make collecting and studying lenses a little more fun.

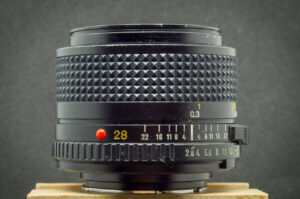

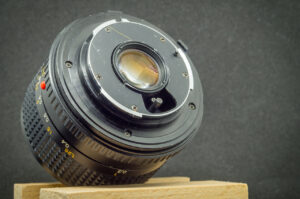

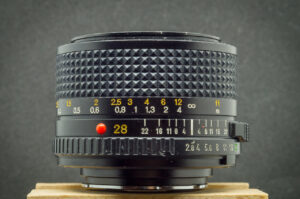

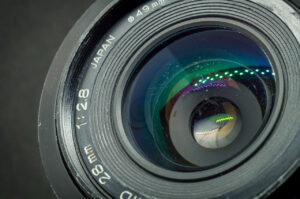

Minolta MD 28mm 1:2.8 5×5 exterior

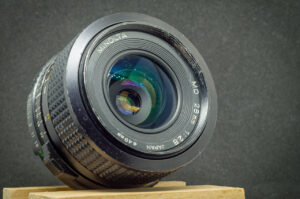

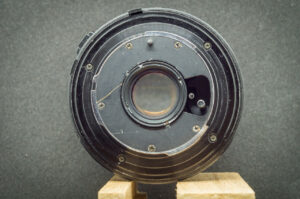

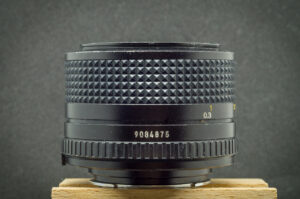

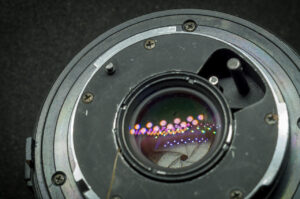

The tested copy was in bad condition of the exterior but is good optically. Later I got another copy, but this review is based on the older lens because this material is one of the firsts published on this site. The newer copy is taking part in articles that have been published later.
Yes, this lens looks like a survivor after a nuclear war. It wasn’t an easy task to repair and return it to full working condition.

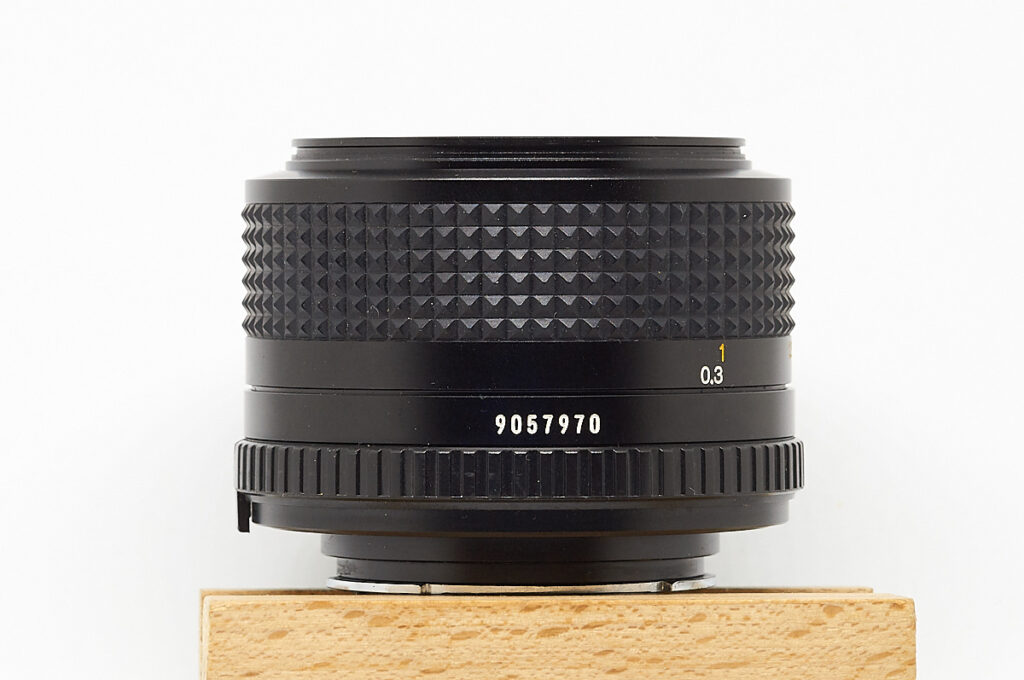

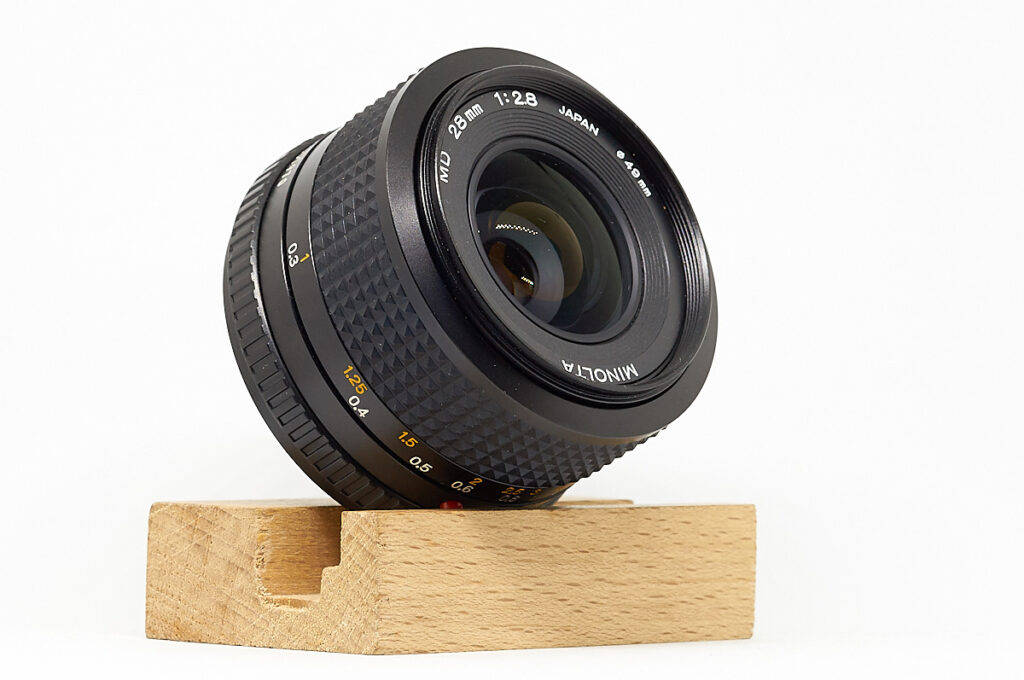

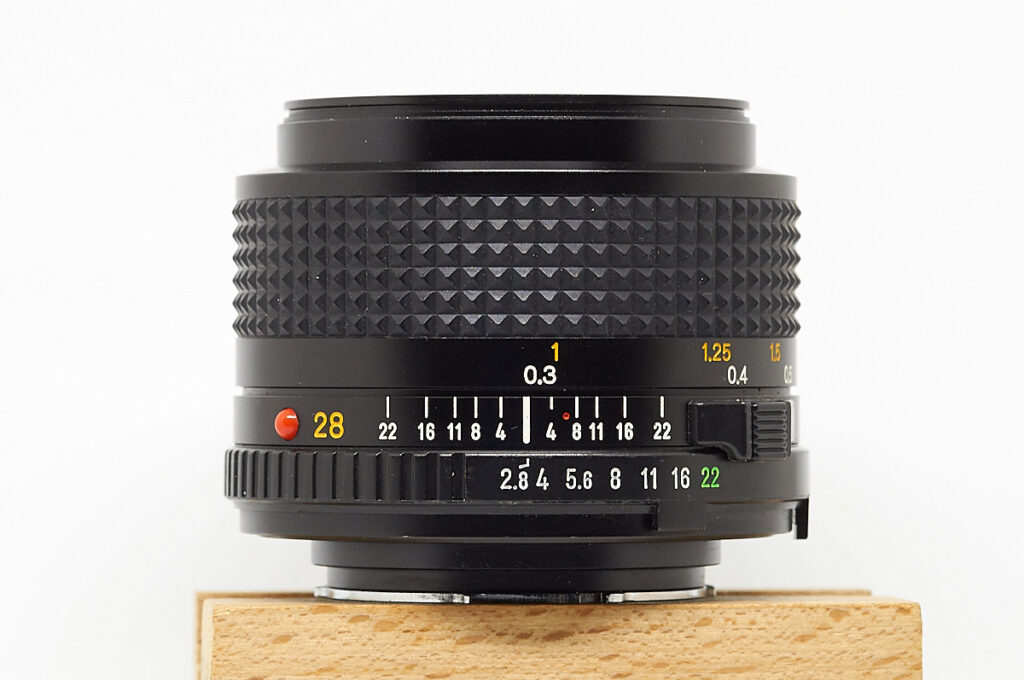

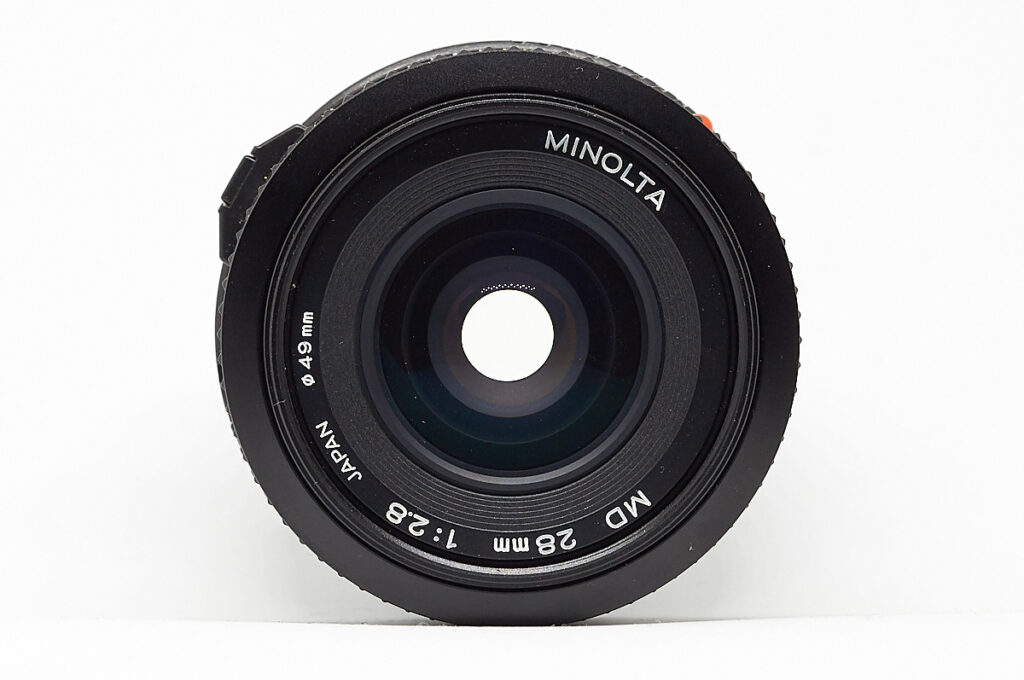

Another copy in “mint”:

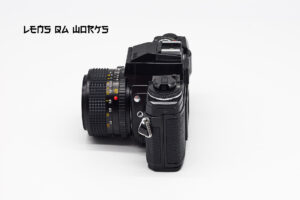

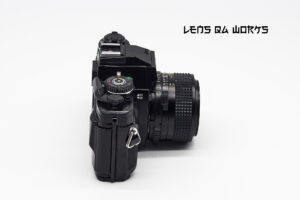

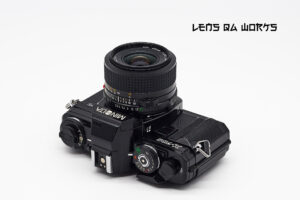

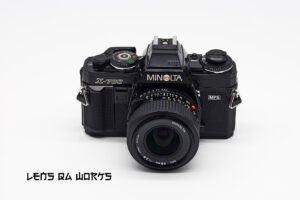

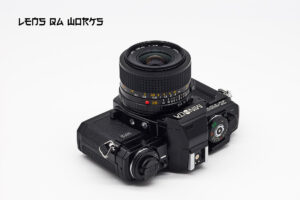

Mounted on Minolta X-700
This is a very suitable set – the camera and lens have the same design
Minolta MD 28mm 1:2.8 7×7 lens-shade
Minolta MD 28mm 1:2.0 sharpness
Сlose-distance resolution test
Testing methods description
- Target: 10-15 cm picture, printed on glossy photo paper
- Distance:10% longer than minimal focus distance marked on the lens
- Camera: Sony A7II (24mpx, full-frame, tripod, remote control). M-mode, ISO fixed, WB fixed, SteadyShot – OFF.
- The test was repeated for every F-stop on every focus position with manual focus adjustment for each shot. That is to avoid the effect of field curvature.
- RAW processing: Capture One, default settings. All quality settings – 100%. Crops – 300×200 px
Scene preview:
Test results (selected version, easy to compare – 4 positions)
Test results (full version – all 9 positions)
Long-distance resolution test
Testing methods description
- Target: cityscape
- Distance: > 200 meters to center focus point
- Camera: Sony A7II (24mpx, full-frame, tripod, remote control). M-mode, ISO fixed, WB fixed, SteadyShot – OFF. The focus point is on the center only.
- RAW processing: Capture One, default settings. All quality settings – 100%. Crops – 300×200 px
Scene preview
Test results
Minolta MD 28mm 1:2.8 5×5 aberrations
Vignetting
Geometric distortion
Coma aberrations
Chromatic aberrations
Short-distance bokeh
Test conditions: lens was focused on minimal distance 0.3m, plants are in 2m distance from the camera
Long-distance bokeh
Test conditions: the lens was focused on half distance on the scale (0.5m), buildings are on “infinity”-distance
Light bubbles bokeh
Test conditions: lens was focused on minimal distance + 10% of scale (about 0.27m), diodes were fixed in 2m distance
Minolta MD 28mm 1:2.8 5 elements 5 groups (or Minolta MD 28mm F/2.8 5×5, New-MD, MD III design) – overall conclusion
The lens has many advantages, but there are also disadvantages. From the positive – it is small, lightweight, inexpensive, it is easy to find on sale. This lens is not rare and therefore has not scored part of the “collectible cost”.
Of the shortcomings, it isn’t a gem and got a quite average IQ. This reincarnation may be slightly better than the previous 7×7 version, but the difference cannot be called noticeable. Although, on F8, it can show good sharpness over the entire field of the frame. It may be recommended to photographers who do not very often shoot at such a focal length but would like to have a 28mm lens just in case.
