Minolta MD 28mm 1:2.8 – 7 elements 7 groups – review

Minolta MD 28mm 1:2.8 7×7 – vintage manual lens test and review
- Official classification: New-MD
- Collector’s classification: MD III
Minolta has produced two MD 28mm F2.8 lenses in the similar MD III design – one with 7 elements in 7 groups optical scheme and another – 5 elements in 5 groups. Both have enough identical exterior but may be easily distinguished because 5×5-version has a thin black ring around the front lens but 7×7-version doesn’t have. Both sisters have been compared by sharpness/resolution, the link is at the bottom of the page. But this article is about the test results of the 7×7-version.
Minolta MD 28mm 1:2.8 7×7 (MD III, New-MD) specifications
minolta.eazypix.de index | 51 |
Name engraved on lens | MD |
f[mm] | 28 |
A max [1/f] | 2,8 |
A min[1/f] | 22 |
Lens design [el.] | 7 |
Lens design [gr.] | 7 |
Filter thread Ø front(rear)[mm] | 49 |
Lens Shade | clip-in |
closefocus[m/ft] | 0.3/1 |
Dimension Ø x length [mm] | 64×43 |

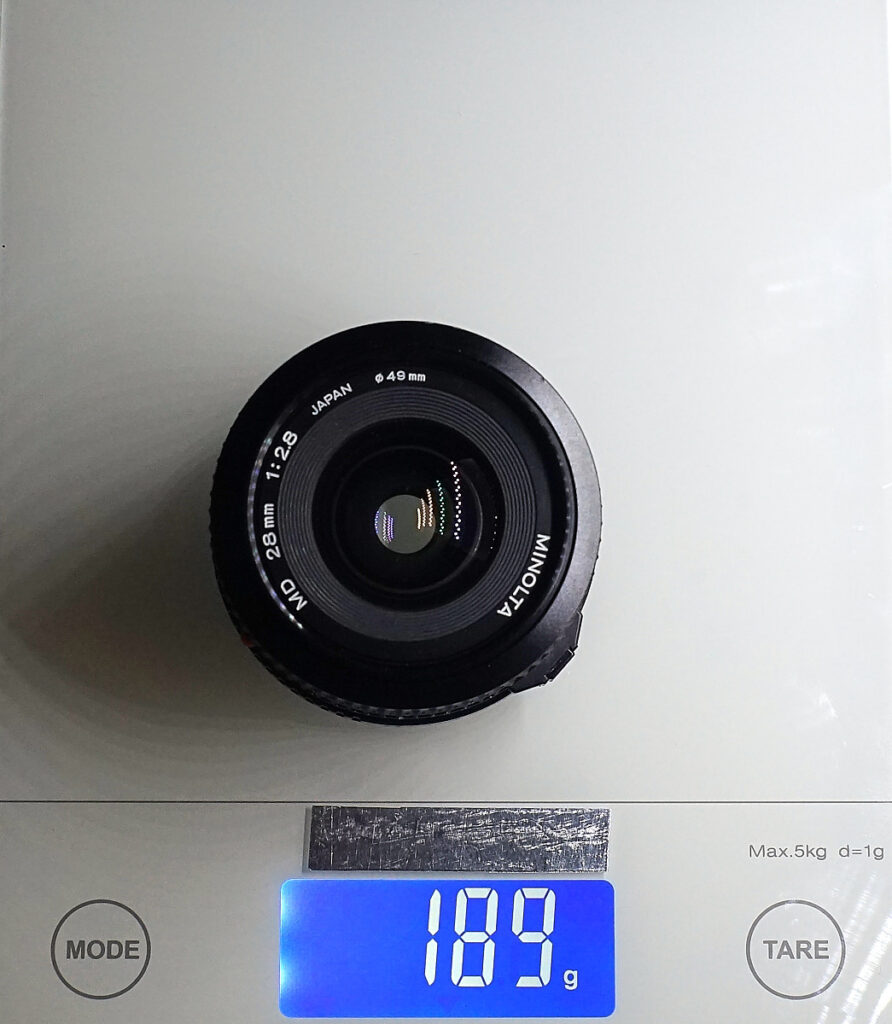

Weight[g] | 185 |
Year | 1981 |
Style | MD III |
Code No. (ROKKOR-X) or Order No. | 590-810 |
Floating elements | NO (full support by autofocused adapters) |
Aperture blades number | 6 |
Confidence in the test results of reviewed copies | Very high |
Reviewed lens SN: | 8072626 |

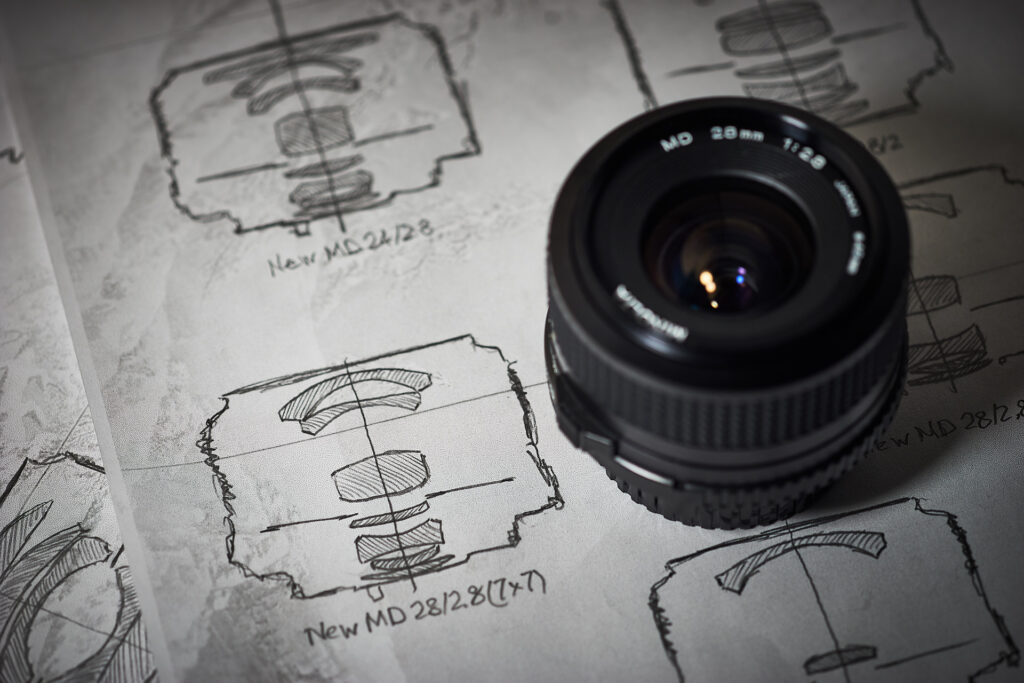

- Minolta MD 28mm f2.8 7×7 optical design

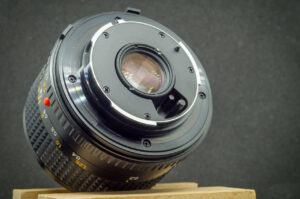

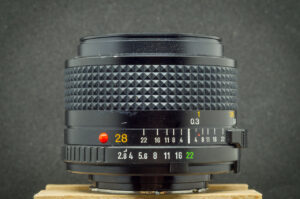

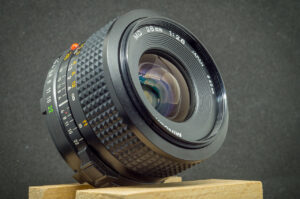

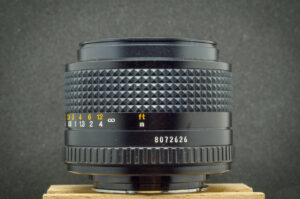

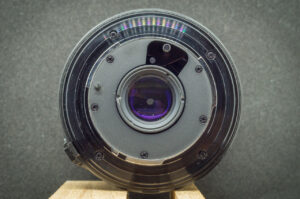

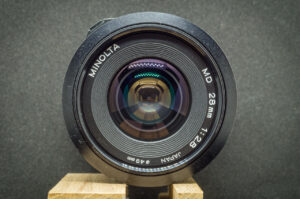

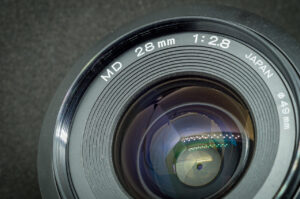

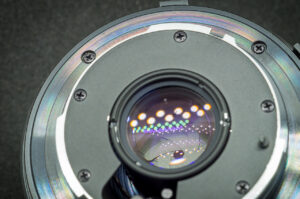

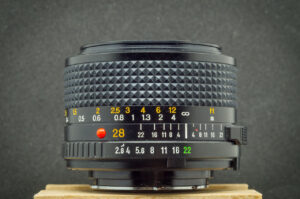

Minolta MD 28mm 1:2.8 7×7 exterior
Mounted on Minolta X-700
This is a very suitable set – the camera and lens have the same design (released 1981)
Minolta MD 28mm 1:2.8 7×7 lens-shade
Minolta MD 28mm 1:2.0 sharpness
Сlose-distance resolution test
Testing methods description
- Target: 10-15 cm picture, printed on glossy photo paper
- Distance:10% longer than minimal focus distance marked on the lens
- Camera: Sony A7II (24mpx, full-frame, tripod, remote control). M-mode, ISO fixed, WB fixed, SteadyShot – OFF.
- The test was repeated for every F-stop on every focus position with manual focus adjustment for each shot. That is to avoid the effect of field curvature.
- RAW processing: Capture One, default settings. All quality settings – 100%. Crops – 300×200 px
Scene preview
Test results (selected version, easy to compare – 4 positions):
Test results (full version – all 9 positions):
Long-distance resolution test
Testing methods description
- Target: cityscape
- Distance: > 200 meters to center focus point
- Camera: Sony A7II (24mpx, full-frame, tripod, remote control). M-mode, ISO fixed, WB fixed, SteadyShot – OFF. The focus point is on the center only.
- RAW processing: Capture One, default settings. All quality settings – 100%. Crops – 300×200 px
Scene preview
Test results:
Minolta MD 28mm 1:2.8 7×7 aberrations
Vignetting
Geometric distortion:
Coma aberrations:
Chromatic aberrations:
Short-distance bokeh
Test conditions: lens was focused on minimal distance 0.25m, plants are in 2m distance from the camera
Long-distance bokeh
Test conditions: the lens was focused on half distance on the scale (0.5m), buildings are on “infinity”-distance
Light bubbles bokeh
Test conditions: lens was focused on minimal distance + 10% of scale (about 0.27m), diodes were fixed in 2m distance
Other resources with tests:
Minolta MD 28mm 1:2.8 7 elements 7 groups (or Minolta MD 28mm F/2.8 7×7, New-MD, MD III design) – overall conclusion
To my regret, I can’t say that this lens is a Minolta’s honor. It’s just an average wide lens with no big advantages. Corners can’t become a sharp even on F8… On the other hand – it’s really cheap, lightweight, well built. Anyway, it is better than most of the analogs on the market, even from first-line companies. So, it can be kept ‘just in case’ if 28mm isn’t the main angle, but can be used sometimes.
